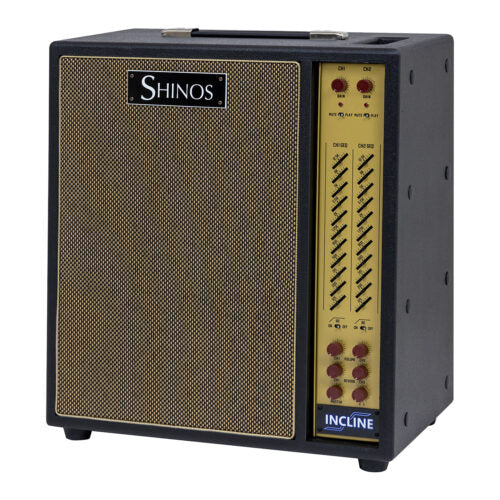

The ultimate high-spec acoustic guitar amplifier "INCLINE"
SHINOS has gained overwhelming support and acclaim for its guitar amplifier ROCKET.
Taking on new challenges with acoustic guitar players
Enjoy the live sound of a musician playing a wonderful acoustic guitar.
I've always wanted to fill a live venue.
Anyone who loves acoustic guitars would definitely feel the same way.
That's why I created INCLINE.
~ SHINOS Master Builder Masaru Shinohara ~
A full-fledged acoustic guitar amplifier that defies conventional wisdom
The two independent channel preamp section uses op-amp ICs not normally used in musical instruments, but found in high-end audio equipment, making it possible to faithfully reproduce the high-grade sound and nuances of musicians with ultra-high quality.
The power amplifier is equipped with a Class-D amp. The 350W output is more than enough for an acoustic guitar amplifier, allowing for a wide headroom. Also, if you connect an 8Ω extension speaker, the maximum output is 700W.

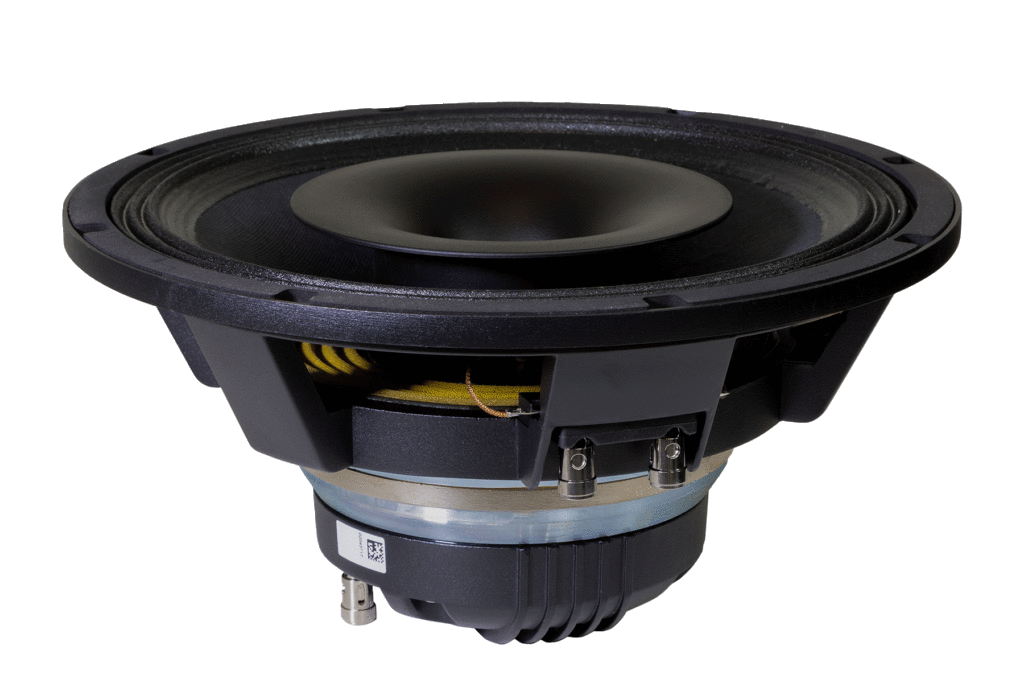

Coaxial Speaker
BEYMA 12CXA400Nd/8Ω/400watt
A core-sounding speaker that Shinohara was obsessed with. It realistically reproduces the sound of an acoustic guitar amp. It produces tight bass and brilliant treble. Because it is a coaxial speaker, it can be picked up with one microphone. By placing the microphone slightly off-center from the speaker, it is possible to pick up the sound of the tweeter and woofer.

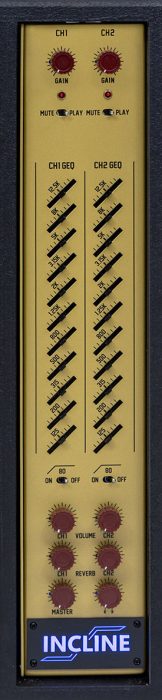

GAIN
The GAIN can be set from 5dB to 37dB. It also has a MUTE SWITCH. Set it according to the output of your guitar pickup. It is not a GAIN for getting distortion like a guitar amplifier.
GEQ
Equipped with an independent 11-band graphic equalizer for each channel. Normally it is used flat, but you can also cut the points where feedback occurs. Of course, it is also possible to boost specific bands.
Frequency: 125 / 200 / 315 / 500 / 800 / 1.25k / 2k /3.15k / 5k / 8k / 12.5k ±12dB
VOLUME
Adjustments to the volume of each channel are reflected in the POST DI OUT.
REVERB
Equipped with adjustable digital reverb on each channel.
MASTER
This is the master volume that mixes each channel and is not reflected in the DI OUT.
HEAD PHONE
Headphones with independent circuits, STEREO/8-40Ω/Gain27dB.

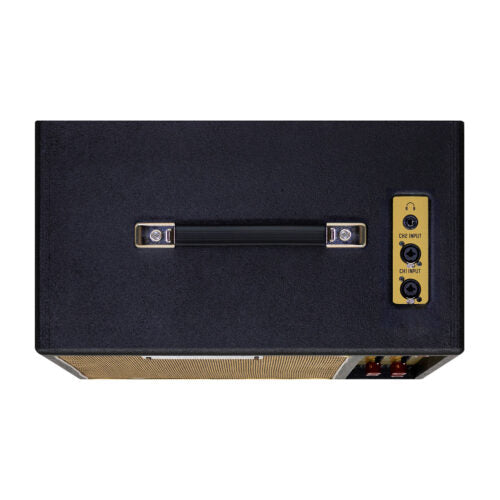

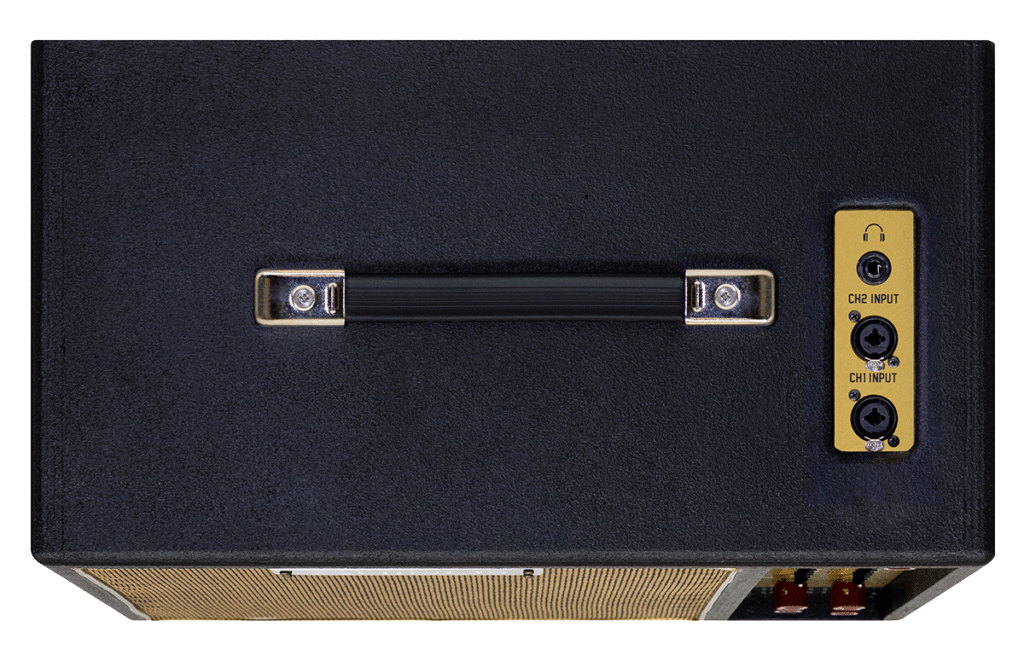

INPUT
The combo-type INPUT located on the top of the amplifier is compatible with XLR/Canon plugs. You can connect a guitar to CH1 and a vocal microphone to CH2 for a live performance.
INPUT IMPEDANCE: 470KΩ

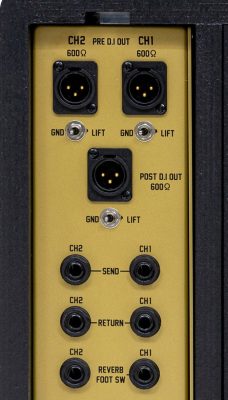

DI OUT
Equipped with a transformer-type DI OUT using a custom-made LINE TRANS manufactured by Athene Denki. PRE/POST DI OUT is available, allowing you to send the signal to the PA at line level. OUTPUT IMPEDANCE: 600Ω
PARALLEL SEND-RETURN -10dB
Parallel connection EFFECT LOOP. This attachment is useful when you want to add distortion by connecting a guitar compact effector such as an overdrive to obtain saturation.
Videos
Specs
INCLINE
| Output Power | 350W / When connecting external speaker 700W |
| Speakers | Coaxial Speaker 12inch / BEYMA 12CXA400Nd /8Ω/400W |
| Poweramp Tubes | Class-D |
| Rectifier | Solid State |
| Preamp Channels | 2 Channel |
| Front Panel Controls | Gain, Mute, GEQ, Volume, Reverb, Master Head Phone |

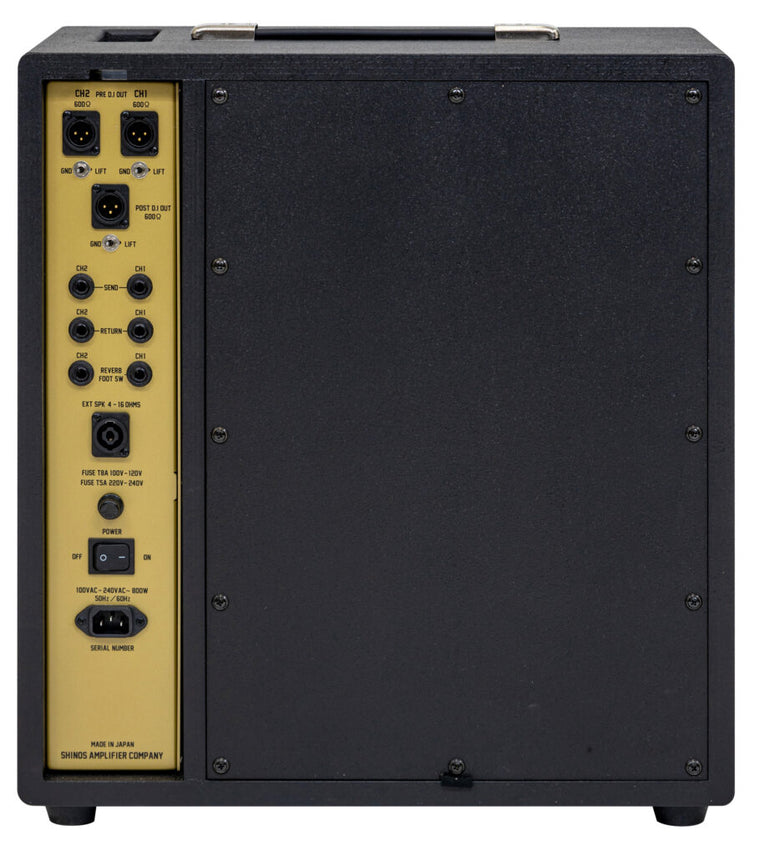

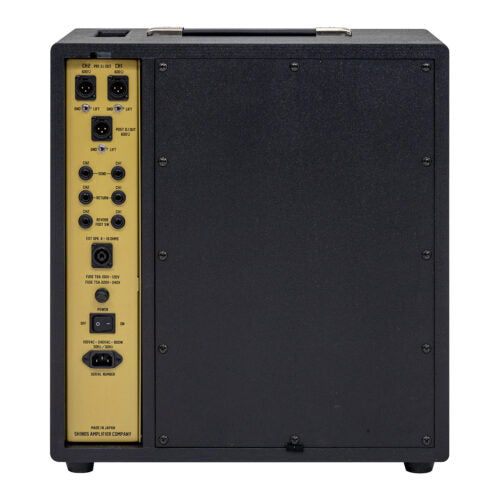

| Back Panel Controls | DI out pre post, GND Switch, Send Return, Reverb Foot Switch, EXT SPK 4-16ohms |
| Footswitch | Reverb on/off |
| Reverb | Digital |
| Cabinet | Biscuit jointed, plywood |
| Weight | 27kg |
| Dimensions (W)×(D)×(H)/mm | 488×300×540 |
| Color | BLACK |
