ROCKET EXTENSION SPEAKER
Two types of extension speakers for infinite sound variations

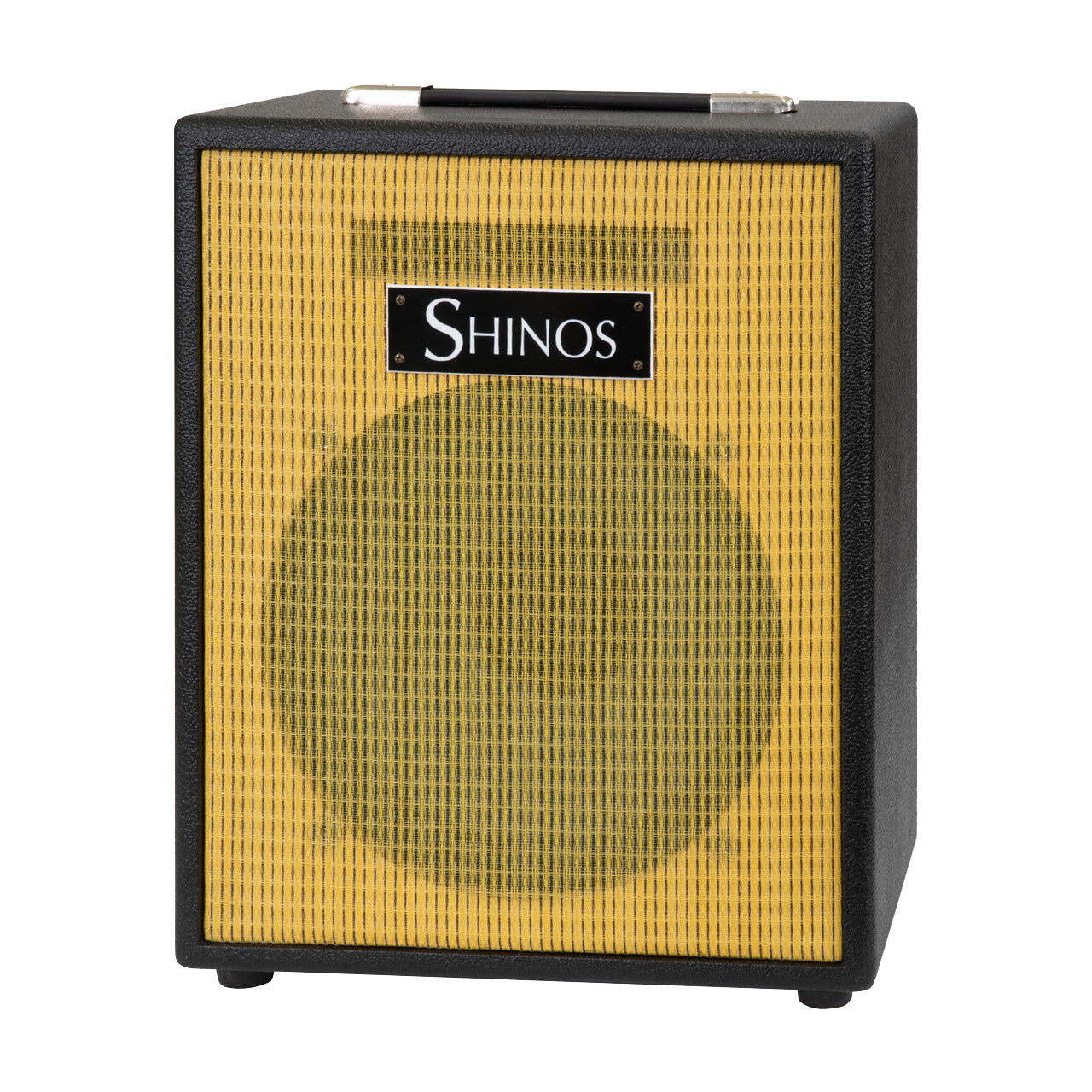

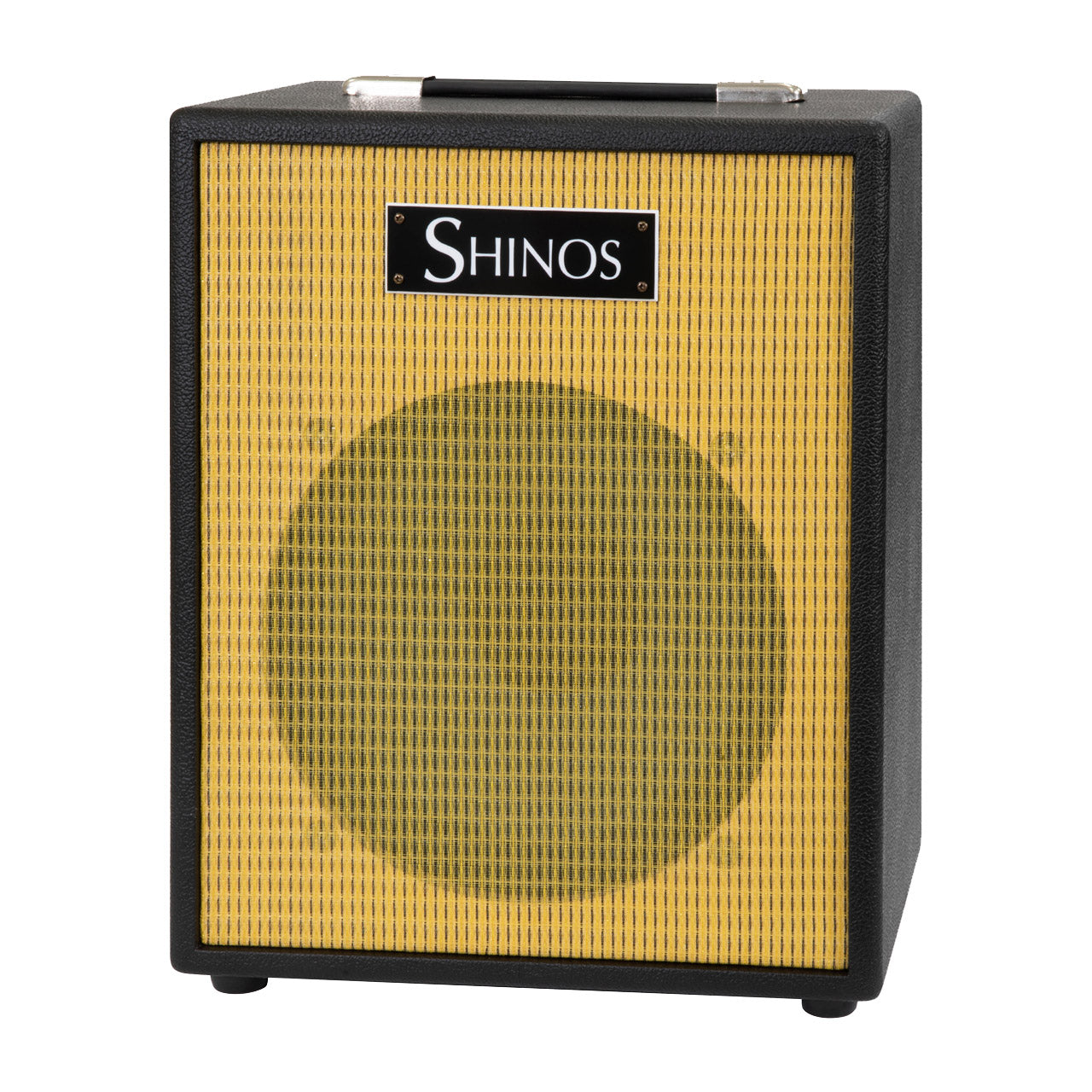

ROCKET 112 OVAL BACK
ROCKET 112 BASS REFLEX
2020
SHINOS&L ROCKET attracted a lot of attention
With this extension speaker
Allows for infinite sound variations

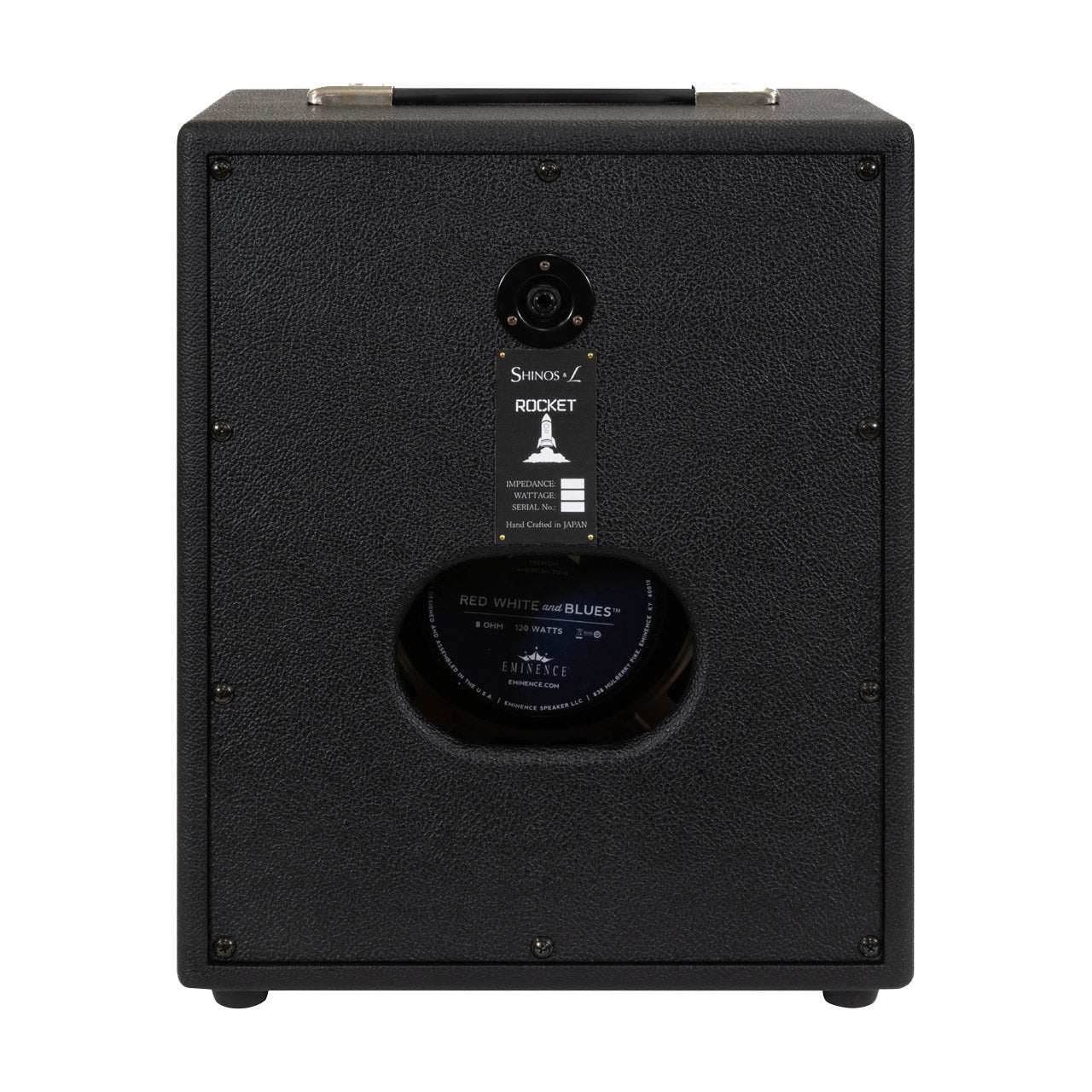

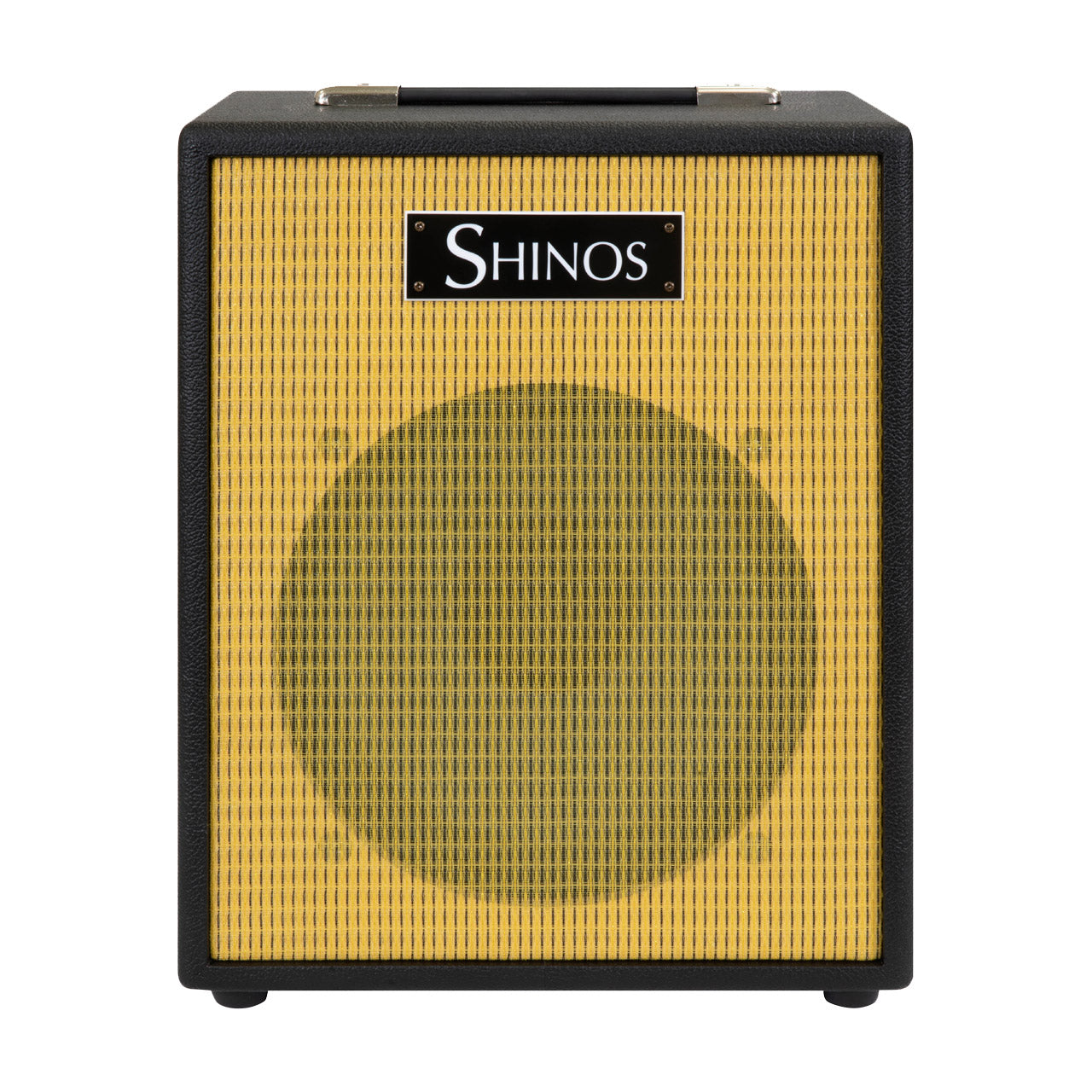

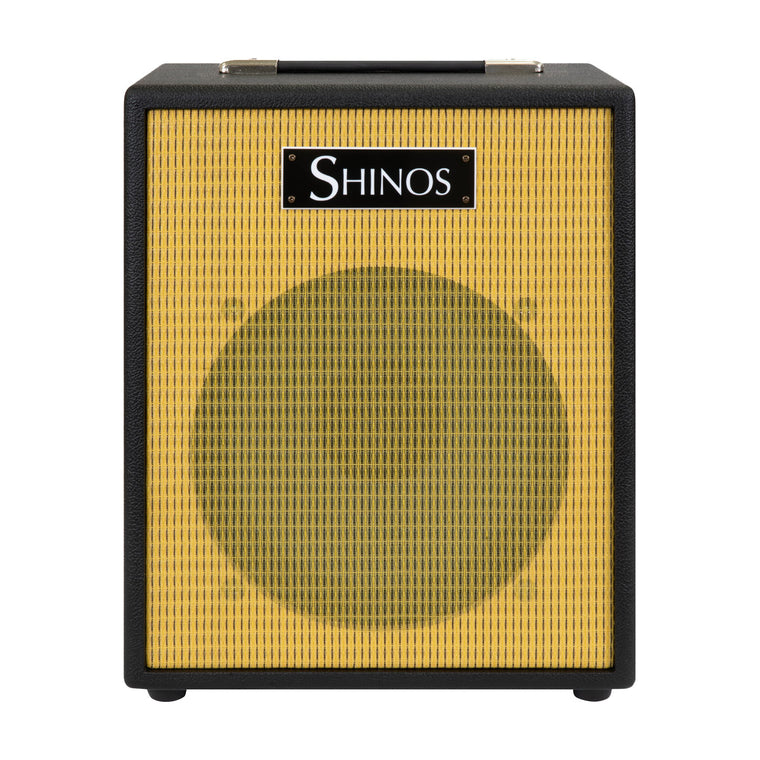

Open back construction

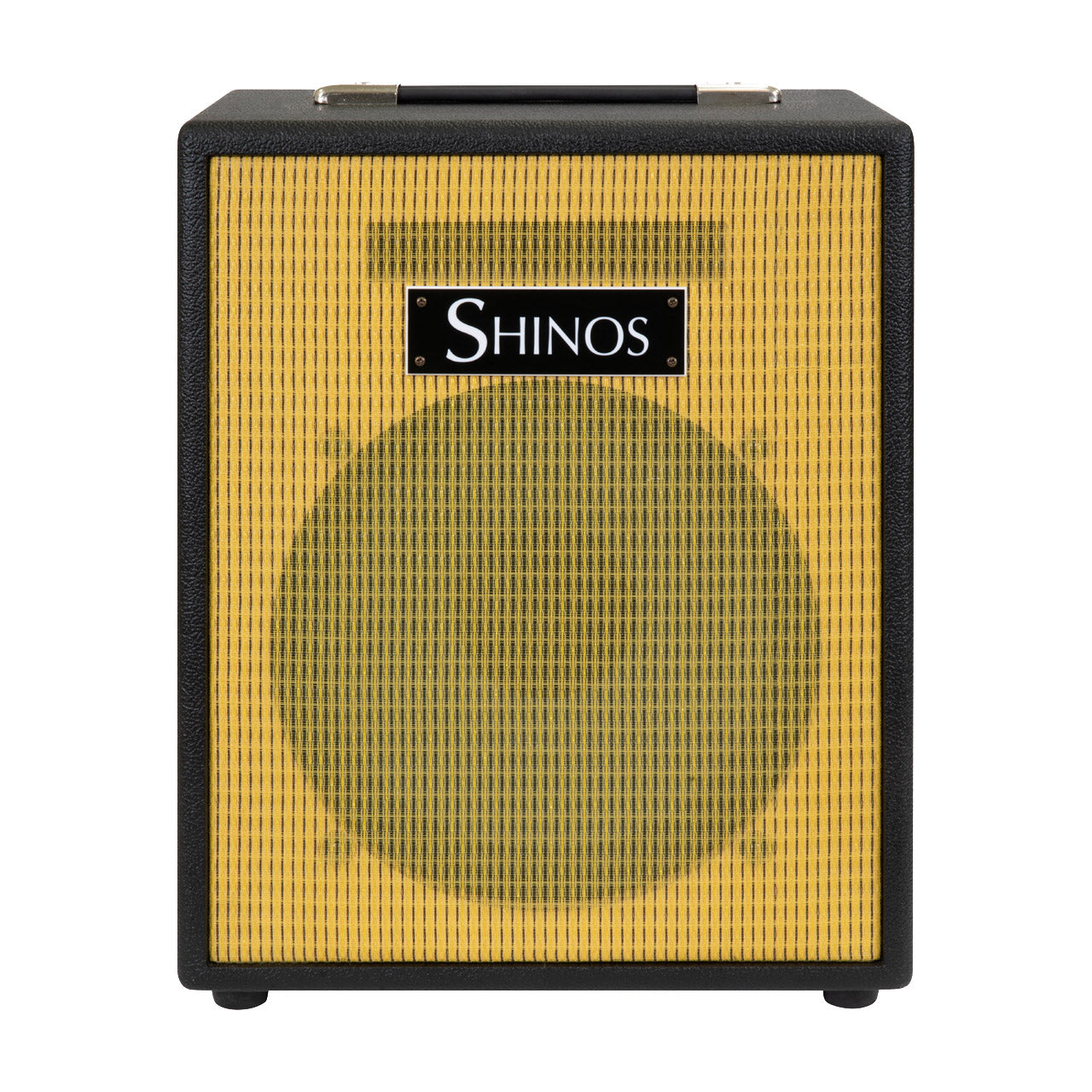

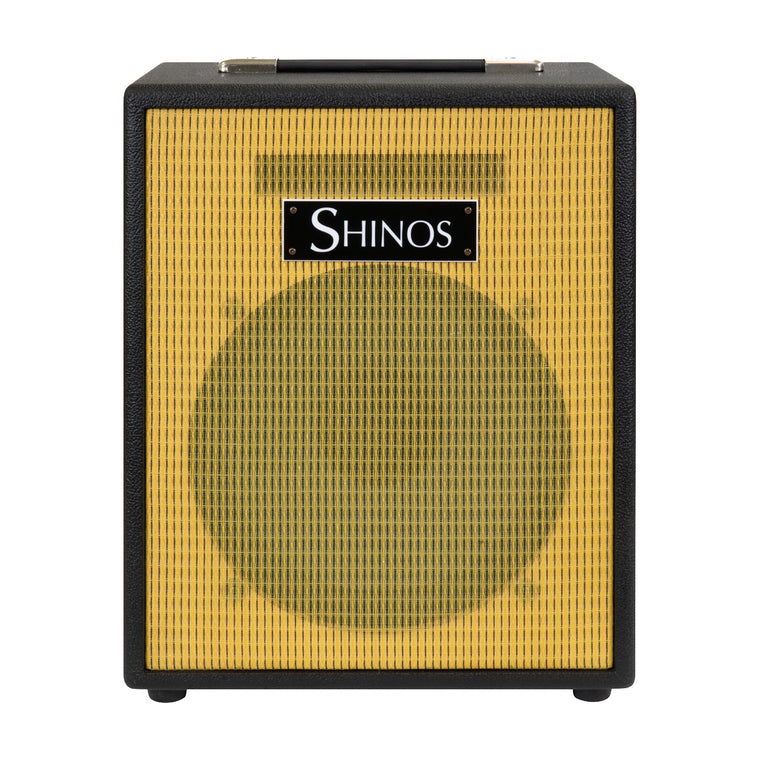

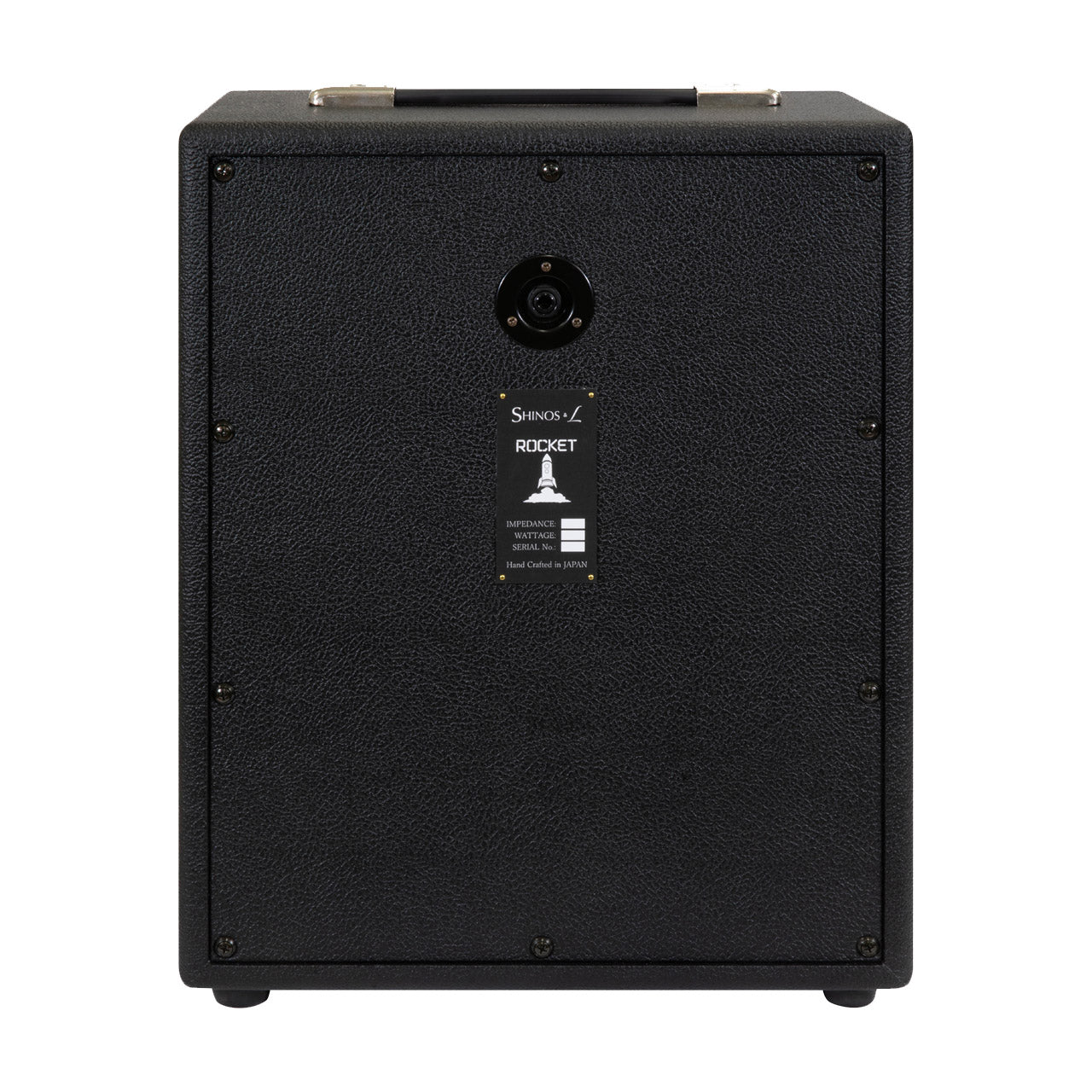

Bass reflex structure
Same size as the ROCKET body.
A distinctive feature is the open ports and ducts on the front side.
In order to emphasize frequencies below the speaker 's lowest resonant frequency of 110Hz ,
Ports and ducts are installed in the baffle board,
creating a duct resonance frequency of around 90Hz.
This is lower than the bass range that the speaker unit itself can produce.
It will produce even lower frequency bass sounds.
This allows you to play not only the bass strings of the guitar,
You get a sound where the high strings have a low end sound.
Colors
ROCKET 112 OVAL BACK
ROCKET 112 BASS REFLEX
Videos
Spec
ROCKET 112 OVAL BACK
ROCKET 112 BASS REFLEX
| Output Power | |
| Speakers | Celestion G12M-65 Creamback, 1×12" 8Ω,65W |
| Output Tubes | |
| Preamp Tubes | |
| Rectifier | |
| Preamp Channels | |
| Front Panel Controls | |
| Back Panel Controls | |
| Footswitch | |
| Reverb | |
| Effects Loop | |
| Cabinet | Dovetail jointed, Pine cabinet |
| Weight | 8.5kg |
| Dimensions (W)×(D)×(H)/mm | 370×235×465 |
| Color | Ivory, Black, White, Red, Navy, Green |
| Output Power | |
| Speakers | Celestion G12M-65 Creamback, 1×12" 8Ω,65W |
| Output Tubes | |
| Preamp Tubes | |
| Rectifier | |
| Preamp Channels | |
| Front Panel Controls | |
| Back Panel Controls | |
| Footswitch | |
| Reverb | |
| Effects Loop | |
| Cabinet | Dovetail jointed, Pine cabinet |
| Weight | 8.5kg |
| Dimensions (W)×(D)×(H)/mm | 370×235×465 |
| Color | Ivory, Black, White, Red, Navy, Green |
